Buy Ryobi RLH1100DS Electric Trimmers Parts

Other tools in Ryobi Electric Trimmers Parts category

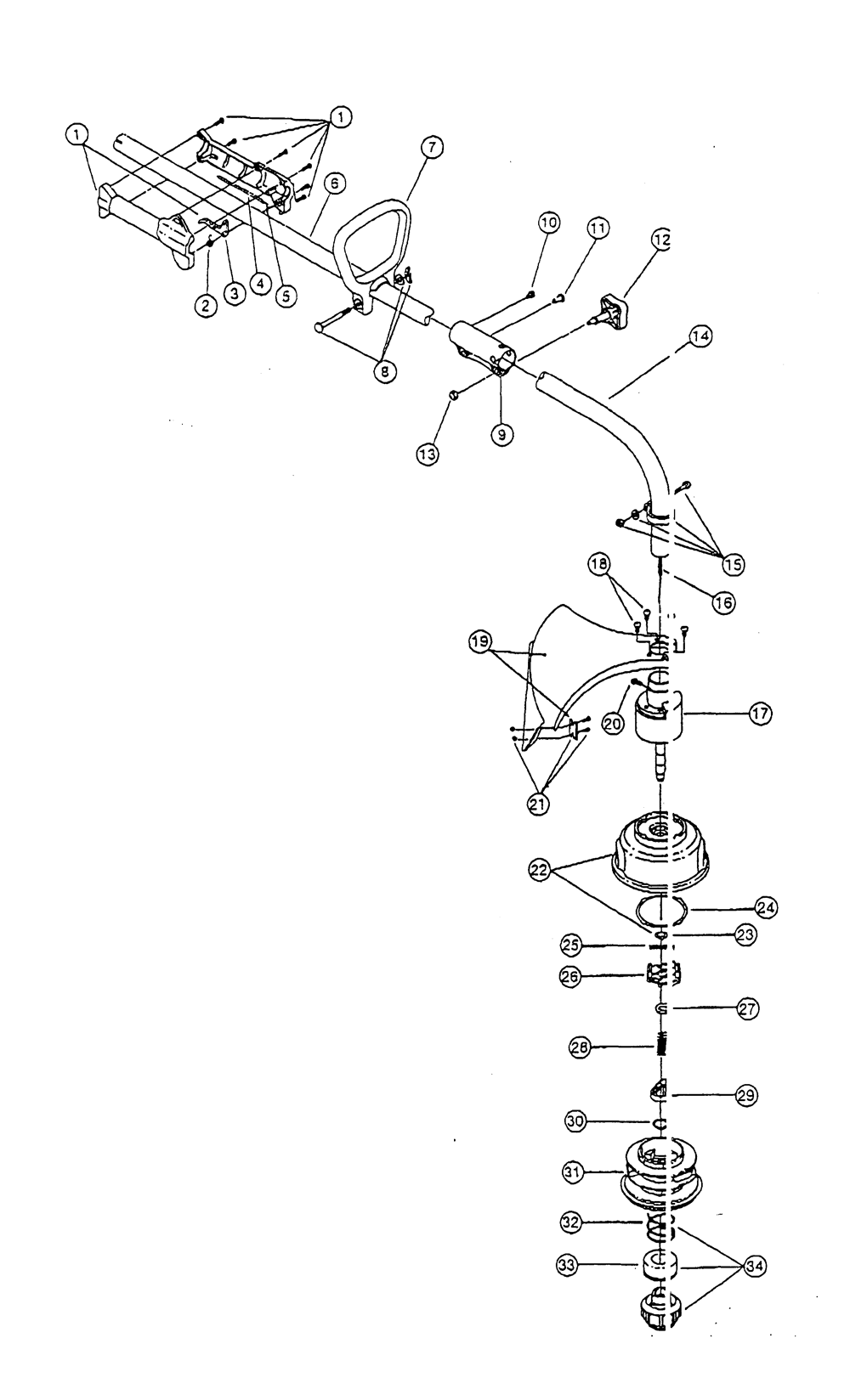

Fig-0

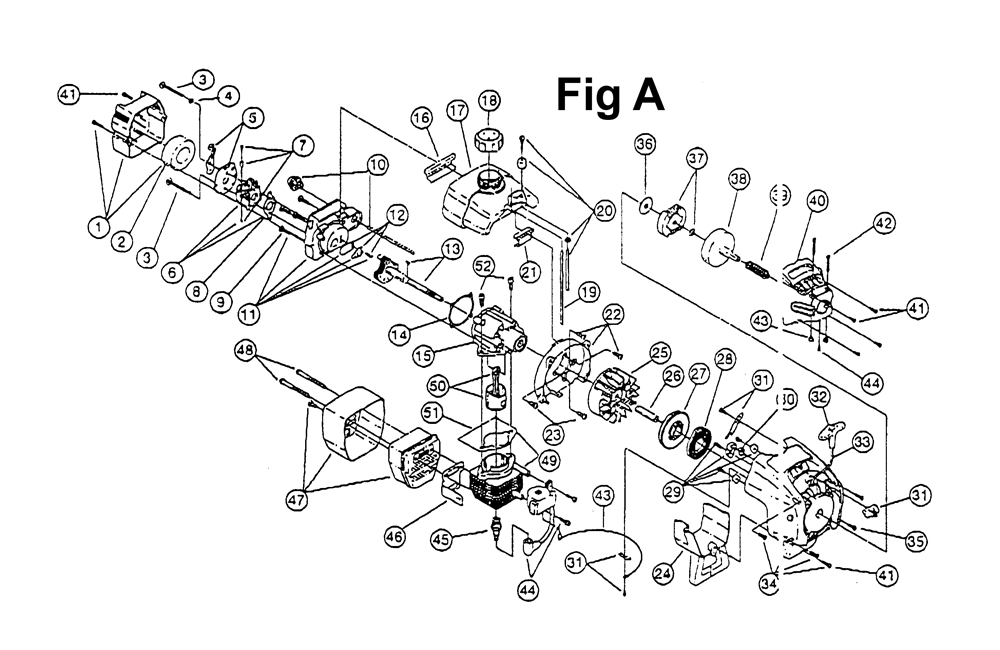

Fig-1

Fig-2

Reference Filter: Filter parts list by name or model number:

Ryobi RLH1100DS Replacement Parts List

00

Complete Cutting Head Assembly (includes 14, 16, 17, 21-33) Part # 181469 Currently not available

N/A
00

Reel and Line Assembly Part # 181460 Currently not available

N/A
00

Cutting Line, (eight - 10 Ft Lengths) Part # 181472 Currently not available

N/A
00

Shoulder Strap Assembly Part # 147075 Currently not available

N/A
1

Throttle Housing and Trigger Assembly Part # 181557 Currently not available

N/A
2

Throttle Trigger Spring Part # 610314 Currently not available

N/A
3

Throttle Trigger Part # 181556 Currently not available

N/A
4

Throttle Cable Housing Assembly Part # 181554 Currently not available

N/A
5

Throttle Cable Part # 180127 Currently not available

N/A
6

Upper Drive Shaft Housing Assembly Part # 181979 Currently not available

N/A
7

D-handle Part # 145819 Currently not available

N/A
8

D-handle Hardware Assembly Part # 181587 Currently not available

N/A
9

Click-link System (incldes 3 & 4) Part # 181616 Currently not available

N/A
10

Screw Part # 182057 Currently not available

N/A
11

Bolt Part # 181617 Currently not available

N/A
12

Adjustment Knob Part # 181618 Currently not available

N/A
13

Knob Retaining Nut Part # 181886 Currently not available

N/A
14

Drive Shaft Housing Assembly Part # 180340 Currently not available

N/A
15

Upper Clamp Assembly Part # 153597 Currently not available

N/A
16

Lower Flexible Drive Shaft Part # 683608 Currently not available

N/A
17

Bushing Housing Assembly W/shaft Part # 181857 Currently not available

N/A
18

Guard Mounting Screw Assembly Part # 181858 Currently not available

N/A
19

Guard and Blade Assembly Part # 683274 Currently not available

N/A
20

Anti-rotation Screw Part # 145569 Currently not available

N/A
